Product Overview: Redefining Industrial Compressor Efficiency Standards

Among industrial production costs, electricity expenses consistently weigh heavily on business owners’ minds. For air compressors—these “power-hungry” machines—reducing energy consumption and improving efficiency are constant considerations for every factory manager.

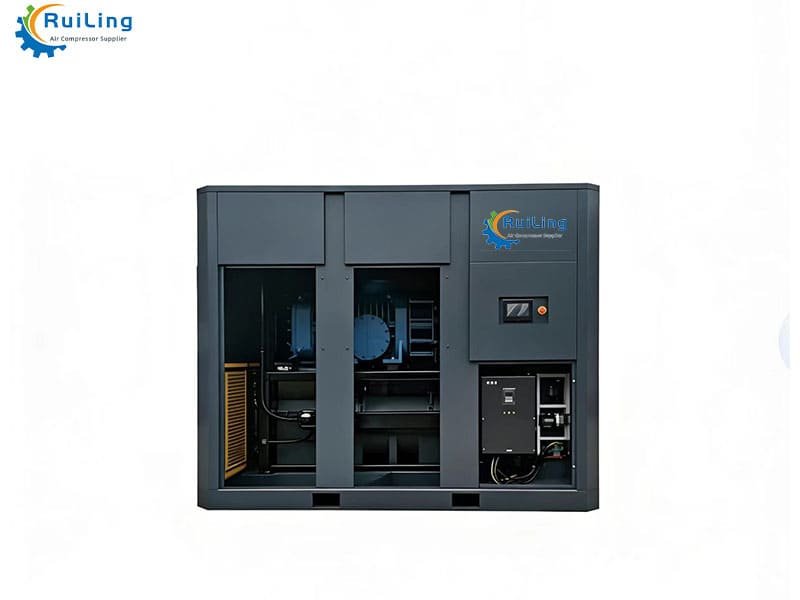

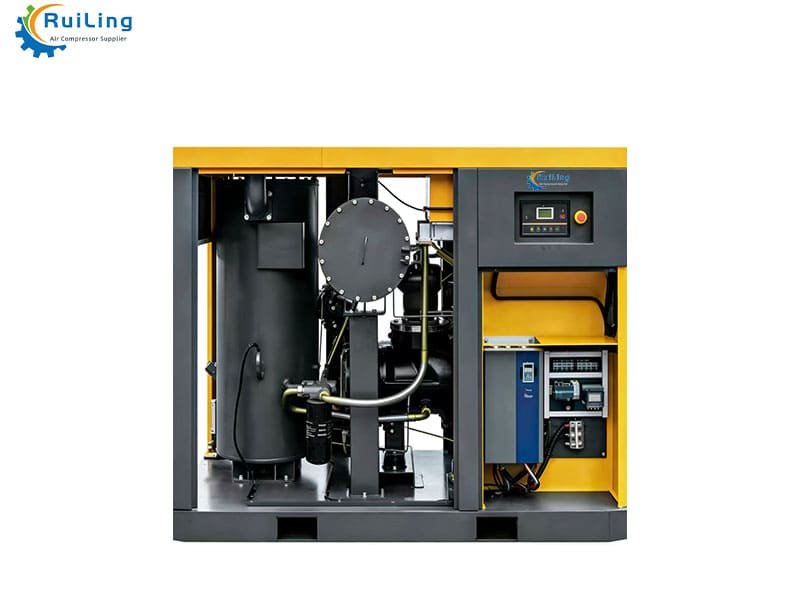

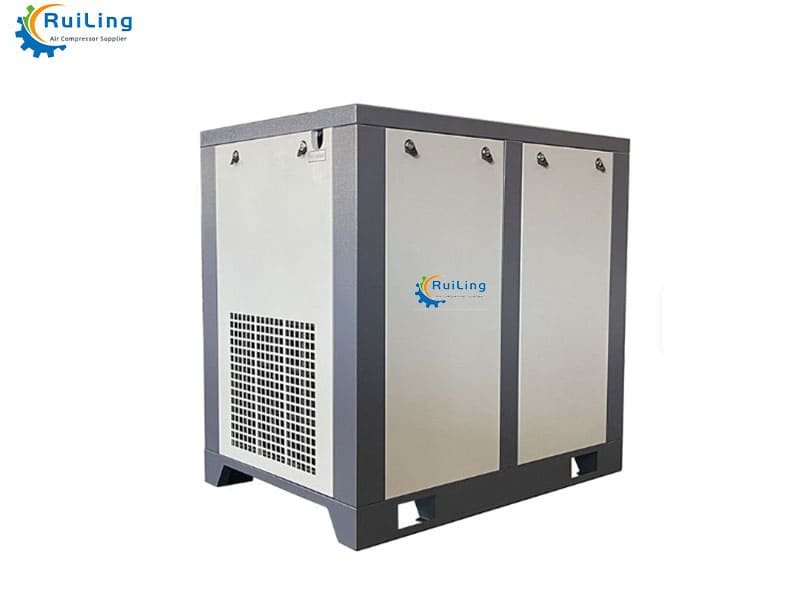

Our two-stage PM VSD rotary screw air compressor is specifically designed to solve this core challenge. It integrates two cutting-edge technologies—two-stage compression and permanent magnet variable speed drive—elevating compressor efficiency to new heights.

Whether you operate a 24/7 continuous production line or are a heavy industrial enterprise with stringent compressed air quality requirements, this product, engineered for demanding conditions, will be your ideal choice. It is more than just equipment; it is a compressed air solution tailored for heavy duty industrial air compressor applications.

Core Technology: The Perfect Combination of Two-Stage Compression and PM VSD

1. Two-Stage Compression Principle

Traditional single-stage screw compressors compress air from atmospheric pressure to final pressure in one step, resulting in high compression ratios, significant internal leakage, and limited efficiency.

Our two-stage compression technology features a series arrangement of two screw air ends:

• First Stage: Air is compressed to intermediate pressure (approximately 2-3 bar)

• Interstage Cooling: Compressed high-temperature air is cooled in an intercooler

• Second Stage: Cooled air is further compressed to final pressure

The advantages of this design are clear: each stage has a lower compression ratio, reducing internal leakage and improving volumetric efficiency. Additionally, interstage cooling lowers second-stage inlet temperature, further reducing compression work.

2. PM VSD Technology Enhancement

Building upon the excellence of two-stage compression, we further equip our units with permanent magnet synchronous motors and intelligent VFD control systems:

• Permanent Magnet Motor: IE4/IE5 ultra-premium efficiency, maintaining high performance across all speed ranges

• VFD Control: Continuously monitors air demand, automatically adjusts motor speed, precisely matching production to consumption

• Soft Start: Zero inrush current startup, reducing grid stress and extending equipment life

The combination of two-stage compression and PM VSD creates a 1+1>2 synergistic effect. Two-stage compression provides higher baseline efficiency, while VFD technology eliminates part-load energy waste, together achieving industry-leading energy performance.

Core Advantages: Why Choose Two-Stage PM VSD Screw Compressors?

1. Exceptional Energy Savings, Fast Payback

Compared to traditional fixed-speed single-stage compressors, our two-stage PM VSD models achieve 25%-35% comprehensive energy savings.

Taking a 160kW unit as an example:

• Annual operation: 6,000 hours

• Electricity rate: $0.12/kWh

• Annual electricity savings: 160kW × 6,000h × 30% × 0.12 ≈ $34,560 USD

This means the additional investment is typically recovered within 1-1.5 years, with pure savings thereafter.

2. Lower Operating Temperature, Longer Life

Two-stage compression reduces the compression ratio per stage, significantly lowering temperature rise during compression. Air end discharge temperatures are 15-20℃ lower than single-stage units, bringing multiple benefits:

• Extended lubricant life

• Reduced bearing loads

• Slower seal aging

• Enhanced overall reliability

For reliability-focused air compressor industrial applications, this is undoubtedly a core advantage.

3. Stable Air Supply, Production Assurance

The inherent design of two-stage compression provides better pressure stability, combined with precise VFD regulation, our compressors maintain pressure fluctuations within ±0.01 bar. This ensures downstream pneumatic equipment operates optimally, guaranteeing product quality.

4. Ultra-Low Noise, Improved Work Environment

With two-stage compression reducing per-stage loads and VFD units operating at reduced speeds most of the time, overall noise is significantly reduced. Compared to equivalent fixed-speed single-stage units, noise is 5-8 dB(A) lower, creating a more comfortable working environment.

5. Compact Design, Space Savings

Despite incorporating two-stage compression, optimized layout ensures our overall dimensions are well-controlled, saving over 30% floor space compared to parallel two-unit single-stage configurations, freeing valuable factory space.

Applicable Industries

Two-stage PM VSD screw compressors are particularly suitable for:

If you are searching for industrial air compressor for sale and your factory matches上述 characteristics, this two-stage PM VSD model deserves your serious consideration.

Intelligent Control System

Every two-stage PM VSD compressor features our 8th Generation Intelligent PLC Controller, making equipment management simpler than ever:

• 10″ Color Touchscreen: Intuitive display of all operating parameters, easy operation

• Multi-Unit Control: Supports up to 8 units with automatic rotation and intelligent load sharing

• Self-Diagnostics: Real-time anomaly detection, precise fault location, solution suggestions displayed

• Data Logging: 90-day operational history for energy analysis and optimization

• IoT Ready: Standard remote monitoring module with smartphone access for real-time status and alerts

• Energy Reports: Automatically generated daily/weekly/monthly reports to understand air costs

Quality Assurance and Testing Standards

As a professional air compressor manufacturer, we enforce strict testing standards on every unit:

1. Air End Testing: Each air end undergoes dynamic balancing and break-in testing before assembly

2. Complete Unit Testing: Every machine undergoes 8-hour full-load continuous operation testing before shipment, with all parameters recorded

3. Leak Testing: Complete unit airtightness testing ensures no leaks

4. Noise Testing: Semi-anechoic chamber testing ensures compliance with rated values

5. Vibration Testing: Key point vibration measurements ensure smooth operation

We offer 5-year extended warranty on air ends—our confidence in product quality and our solemn commitment to customers.

Installation and Service Support

Installation Guidance

• Detailed installation drawings and manuals provided

• Optional on-site engineer guidance

• Remote video guidance service

Commissioning Service

• Professional engineers handle commissioning

• On-site operator training

After-Sales Support

• 7×24 hour service hotline

• 2-hour response to inquiries

• 48-hour arrival on-site (major industrial cities)

• Genuine spare parts supply, fast shipping

Preventive Maintenance

• Proactive service reminders

• Regular inspections to prevent failures

• Annual efficiency testing and optimization recommendations
