Full-performance Air Compressor for Laser: The Invisible Hero Behind Perfect Cuts
Product Overview: The Perfect Partner for Laser Cutting
Fiber laser cutting machines have become dominant in metal processing. Whether in sheet metal fabrication, signage production, machinery manufacturing, or automotive parts production, laser cutting has become an indispensable processing method in modern manufacturing due to its high precision, high speed, and high flexibility.
However, many users often overlook a critical factor: the quality of assist gas for laser cutters directly affects cutting results and equipment life.
Our laser cutting air compressor is specifically designed to solve this challenge. Integrating compressor, refrigerated dryer, and precision filters into one unit, it provides clean, dry, stable compressed air for laser cutters, ensuring bright, dross-free cutting surfaces and significantly extended lens life.
As a professional provider of air compressor for industrial use solutions, we understand the stringent requirements industrial applications place on equipment reliability and air quality. This laser cutting compressor is engineered to meet these high standards.
Why Laser Cutting Needs a Dedicated Compressor?
1. The Role of Assist Gas
During fiber laser cutting, compressed air plays multiple critical roles:
Blows away molten metal: Prevents dross accumulation on cutting surfaces, ensuring smooth cuts
Cools the cutting area: Reduces heat-affected zones, prevents material deformation
Protects focusing lenses: Prevents smoke and spatter from contaminating lenses
Enhances cutting capability: Assist gas pressure helps penetrate thick plates
3. Special Requirements for Laser Cutting Air Quality
| Parameter | Requirement | Explanation |
|---|---|---|
| Oil Content | ≤ 0.01 mg/m³ | 1/500 of Standard Air Compressor |
| Particle Content | ≤ 0.01 μm | Requires high-efficiency precision filters |
| Pressure Dew Point | 2℃ – 8℃ | Prevents lens fogging |
| Pressure Stability | Within ±0.1 bar | Ensures cutting consistency |
Core Technical Advantages
1. Ultra-Clean Compressed Air System
Our laser cutting compressor features a four-stage precision filtration system, ensuring air quality fully meets laser cutting requirements:
Stage 1: Pre-filter——3μm filtration, removes large particles and liquid water
Stage 2: Fine filter——1μm filtration, residual oil ≤0.5 mg/m³
Stage 3: High-efficiency fine filter——0.01μm filtration, residual oil ≤0.01 mg/m³
Stage 4: Activated carbon filter (optional)——Absorbs oil vapor and odors for demanding applications
2. Deep Drying System
Equipped with a high-performance refrigerated dryer featuring Renowned brand refrigeration compressors, high heat exchange efficiency, stable pressure dew point of 2℃-8℃. Optional desiccant dryer achieves -40℃ dew point for extreme drying requirements.
3. Pressure Stability Technology
Laser cutting is extremely sensitive to pressure fluctuations. Our units feature:
Large capacity air tank: Buffers pressure fluctuations, ensures instantaneous high-flow supply
High-precision pressure regulator: Control accuracy ±0.1 bar
Intelligent VFD control: Automatically adjusts based on demand, maintains constant pressure
4. Quiet Operation
Laser cutters are typically installed in workshops, making noise an important consideration. Our units feature:
Fully enclosed soundproof enclosure: Internal acoustic insulation
Low-noise fans: Optimized airflow design
Vibration-damping base: Reduces vibration transmission
5. Intelligent Control System
Featuring a 7″ color touchscreen PLC controller optimized for laser cutting applications:
Laser synchronization: Communicates with laser machine, auto-starts during cutting
Self-diagnostics: Real-time monitoring, precise alerts, solution suggestions displayed
IoT interface: Optional remote monitoring with smartphone access
Product Series and Technical Specifications
We offer multiple laser cutting compressor models for different laser power ranges:

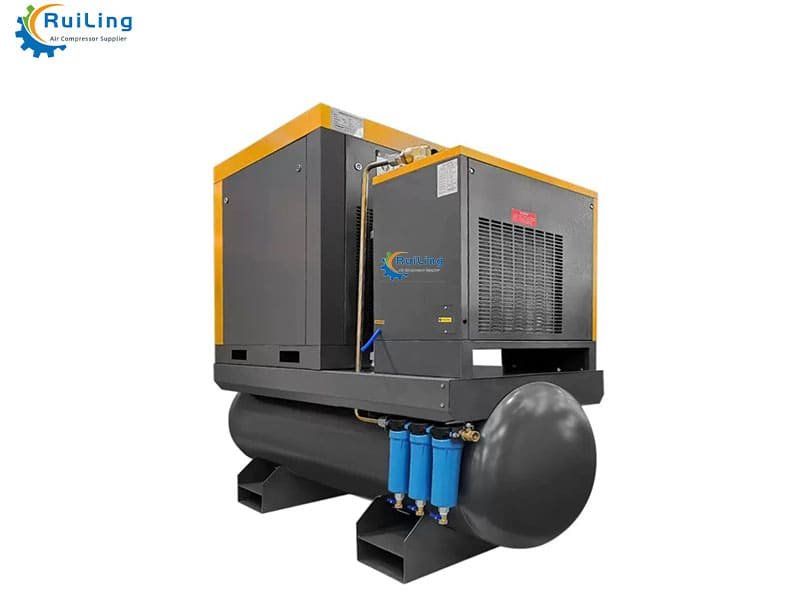

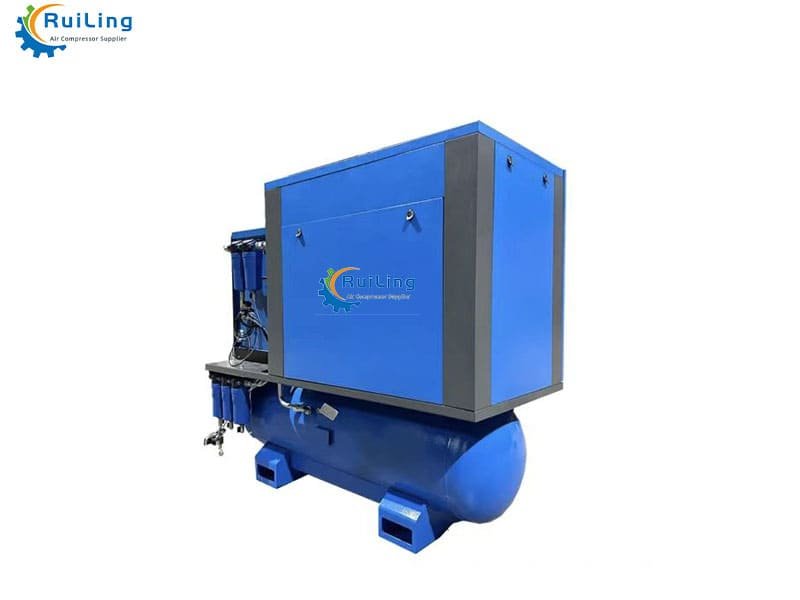

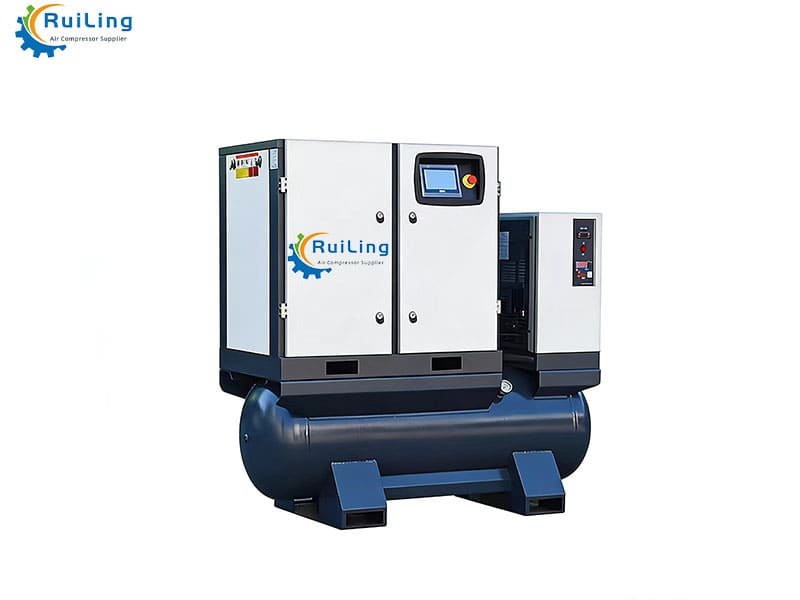

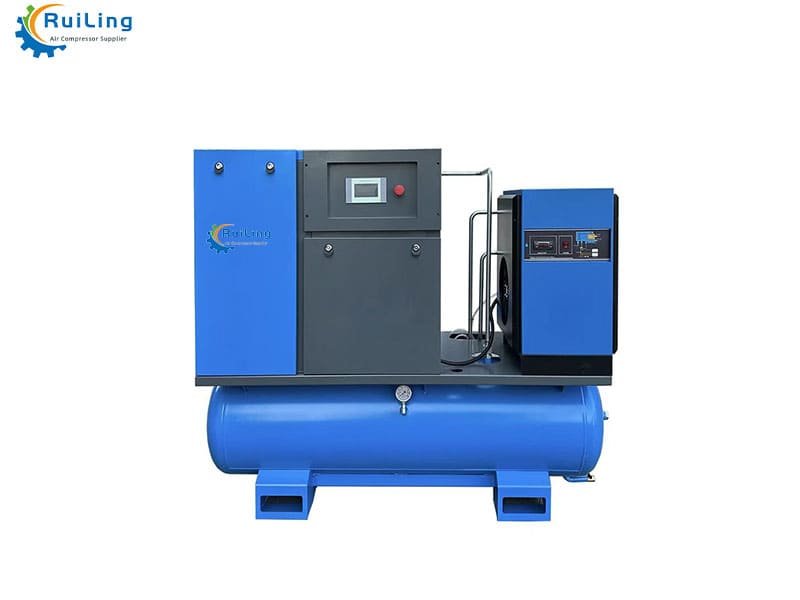

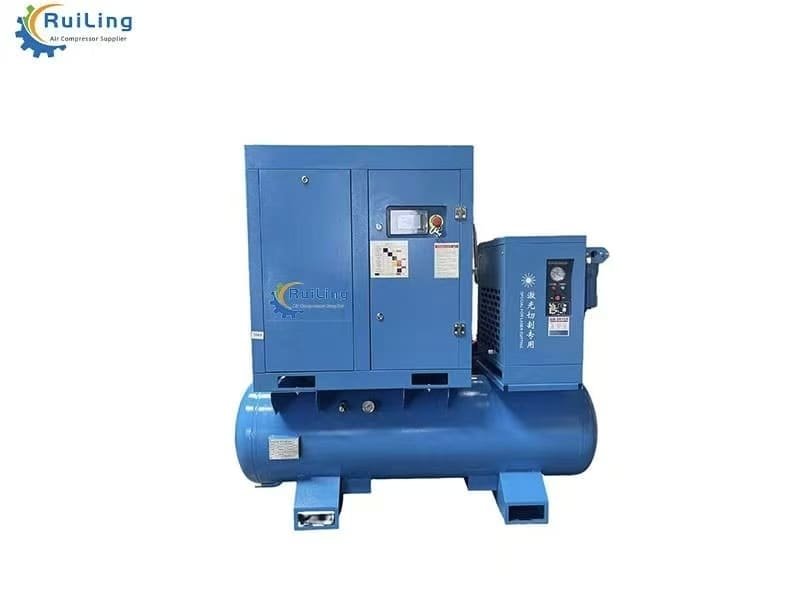

LSR Series: Integrated Laser Compressor (Recommended)
Integrates compressor, dryer, and filters into one unit—plug and play, space-saving.
| Model | Compatible Laser Power | Power | Air Delivery | Pressure | Air Tank | Dimensions |
|---|---|---|---|---|---|---|
| LSR-15A | 1000W-3000W | 15 kW | 1.8-2.4 m³/min | 8-13 bar | 270L | 1800×900×1600 mm |
| LSR-22A | 4000W-6000W | 22 kW | 3.2-3.8 m³/min | 8-13 bar | 430L | 2000×1000×1700 mm |
| LSR-37A | 6000W-12,000W | 37 kW | 5.6-6.5 m³/min | 8-13 bar | 600L | 2300×1200×1900 mm |
| LSR-55A | 12,000W-20,000W | 55 kW | 8.5-10.2 m³/min | 8-13 bar | 1000L | 2800×1500×2000 mm |
LSR-PM Series: PM VSD Laser Compressor (Energy Efficient)
Adds PM VSD technology to LSR series, saving 25%-35% energy, ideal for fluctuating demand.
| Model | Compatible Laser Power | Power | Air Delivery | Pressure | Energy Saving |
|---|---|---|---|---|---|
| LSR-22PM | 4000W-8000W | 22 kW | 1.8-4.2 m³/min | 8-13 bar | VSD, 30% savings |
| LSR-37PM | 8000W-15,000W | 37 kW | 3.2-7.2 m³/min | 8-13 bar | VSD, 30% savings |
LSR-SEP Series: Separate Configuration (For Customers with Existing Compressors)
If you already have a compressor but air quality is insufficient, choose this series to upgrade.
| Model | Compatible Laser Power | Included Equipment | Features |
|---|---|---|---|
| LSR-D15 | 1000W-4000W | Dryer + 4-stage filtration + tank | Upgrade existing source |
| LSR-D22 | 4000W-8000W | Dryer + 4-stage filtration + tank | Upgrade existing source |
| LSR-D37 | 8000W-15,000W | Dryer + 4-stage filtration + tank | Upgrade existing source |
Note: If you require industrial air compressor installation services, our engineering team provides professional installation guidance and commissioning support to ensure correct setup and efficient operation.
Target Customer Groups
1. Sheet Metal Fabrication Shops (B2B)
Characteristics: Multiple lasers running simultaneously, high air demand, high stability requirements
Recommended: LSR-37A or LSR-55A, optional multi-unit control system
2. Signage Companies (B2B)
Characteristics: Primarily acrylic and wood cutting, moderate air quality requirements
Recommended: LSR-15A or LSR-22A, standard filtration sufficient
3. Machine Shops (B2B)
Characteristics: Laser cutting as secondary process, moderate demand but requires stability
Recommended: LSR-15A based on laser power
4. Individual Fabricators (B2C)
Characteristics: Single laser, limited budget, wants better cutting quality
Recommended: LSR-15A basic, or existing compressor + LSR-D15 upgrade
Whether you’re a large factory or an individual operator, we provide solutions matching your needs. As professional industrial air compressor suppliers, we are committed to delivering the most suitable products and expert service to every customer.
Comparison withStandard Air Compressor
| Aspect | Standard Air Compressor | Laser Dedicated Compressor |
|---|---|---|
| Filtration | Single or two-stage, low precision | Four-stage precision, 0.01μm |
| Drying | None or basic dryer | High-performance dryer, stable dew point |
| Pressure Stability | ±0.3 bar or more | Within ±0.1 bar |
| Oil Content | 2-5 ppm | ≤0.01 mg/m³ (≈0.012 ppm) |
| Lens Life | 1-3 months | 6-12 months |
| Cut Quality | Dark surface, dross | Bright surface, no grinding needed |
| Maintenance Cost | Frequent lens replacement, high cost | Long lens life, lower overall cost |
Installation and Service Support
Professional Installation Guidance
We understand that proper industrial air compressor installation is crucial for long-term stable operation. We provide comprehensive installation support:
Detailed installation manual: Illustrated guide
Video guidance: Step-by-step video demonstrations
Remote technical support: Engineers online to answer questions
On-site installation service (optional): Engineer guidance on-site
Commissioning Service
Professional engineers handle commissioning
On-site operator training
After-Sales Support
2-year comprehensive warranty, 5-year air end warranty
7×24 hour service hotline
2-hour response to inquiries
48-hour arrival on-site (major cities)
Genuine spare parts supply, fast shipping
Preventive Maintenance Program
Proactive service reminders
Two free inspections annually
Filter life management alerts
Annual efficiency testing
